SN- SNH Tip Rulmanlı Yataklar

Ürün Bilgisi

Rulmanlı yatakların hız ve dayanım açısından yetmediği noktada kullanılan döküm gövdeli yatak tipleridir. İçerisine rulman ve manşon takılarak kullanılır.

Detaylı Açıklama

SN-500

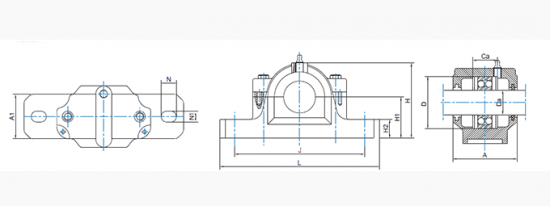

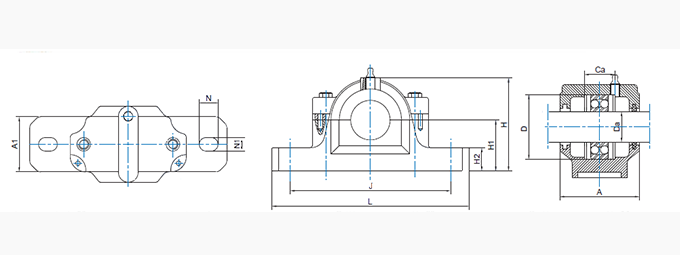

Housıng No	Dimensions											Weight Kg	Bearing No	Adapter No	Locating Ring
Housıng No	Da	D	A	Ca	H	H1	H2	J	L	N	N1	Weight Kg	Bearing No	Adapter No	Locating Ring
SN-505	20	52	67	25	74	40	19	130	165	20	15	1,5	1205 K 2205 K	H 205 H 305	2 FRB 5/52 2 FRB 3.5/52
SN-506	25	62	77	32	89	50	22	150	185	20	15	2,20	1206 K 2206 K	H 206 H 306	2 FRB 8/62 2 FRB 6/62
SN-507	30	72	82	34	93	50	22	150	185	20	15	2,10	1206 K 2207 K	H 207 H 307	2 FRB 8.5/72 2 FRB 5.5/72
SN-508	35	80	85	39	107	60	25	170	205	20	15	2,80	1208 K 2208 K	H 208 H 308	2 FRB 10.5/80 2 FRB 8/80
SN-509	40	85	85	30	109	60	25	170	205	20	15	3	1209 K 2209 K	H 209 H 309	2 FRB 5.5/85 2 FRB 3.8/85
SN-510	45	90	90	41	113	60	25	170	205	20	15	3,12	1210 K 2210 K	H 210 H 310	2 FRB 10.5/90 2 FRB 9/90
SN-511	50	100	95	44	127	70	28	210	255	24	18	4,40	1211 K 2211 K	H 211 H 311	2 FRB 11.5/100 2 FRB 9.5/100
SN-512	55	110	105	48	133	70	30	210	255	24	18	5,40	1212 K 2212 K	H 212 H 312	2 FRB 13/110 2 FRB 10/110
SN-513	60	120	110	51	148	80	30	230	275	24	18	7,10	1213 K 2213 K	H 213 H 313	2 FRB 14/120 2 FRB 10/120
SN-515	65	130	115	56	154	80	30	230	280	24	18	6,90	1215 K 2215 K	H 215 H 315	2 FRB 15.5/130 2 FRB 12.5/130
SN-516	70	140	120	58	175	95	32	260	315	28	22	9,20	1216 K 2216 K	H 216 H 316	2 FRB 16/140 2 FRB 12.5/140
SN-517	75	150	125	61	183	95	32	260	320	28	22	10	1217 K 2217 K	H 217 H 317	2 FRB 16.5/150 2 FRB 12.5/150
SN-518	80	160	140	65	193	100	35	290	345	28	22	12,60	1218 K 2218 K	H 218 H 318	2 FRB 17.5/160 2 FRB 12.5/160
SN-519	85	170	145	68	210	112	35	290	345	28	22	14,40	1219 K 2219 K	H 219 H 319	2 FRB 18/170 2 FRB 12.5/170
SN-520	90	180	160	70	215	112	40	320	380	32	26	17,60	1220 K 2220 K	H 220 H 320	2 FRB 18/180 2 FRB 12/180
SN-522	100	200	175	80	239	125	45	350	410	32	26	21,80	1222 K 2222 K	H 222 H 322	2 FRB 21/200 2 FRB 13.5/200
SN-524	110	215	185	86	270	140	45	350	410	32	26	28,70	22224 K 23224 K	H 3124 H 2324	2 FRB 14/215 2 FRB 5/215
SN-526	115	230	190	90	290	150	50	380	445	35	28	33	22226 K 23226 K	H 3126 H 2326	2 FRB 13/230 2 FRB 5/230
SN-528	125	250	205	98	302	150	50	420	500	42	35	45	22228 K 23228 K	H 3128 H 2328	2 FRB 15/250 2 FRB 5/250
SN-530	135	270	220	106	323	160	60	450	530	42	35	52,50	22230 K 23230 K	H 3130 H 2330	2 FRB 16.5/270 2 FRB 5/270
SN-532	140	290	235	114	345	170	60	470	550	42	35	59	22232 K 23232 K	H 3132 H 2332	2 FRB 17/290 2 FRB 5/290

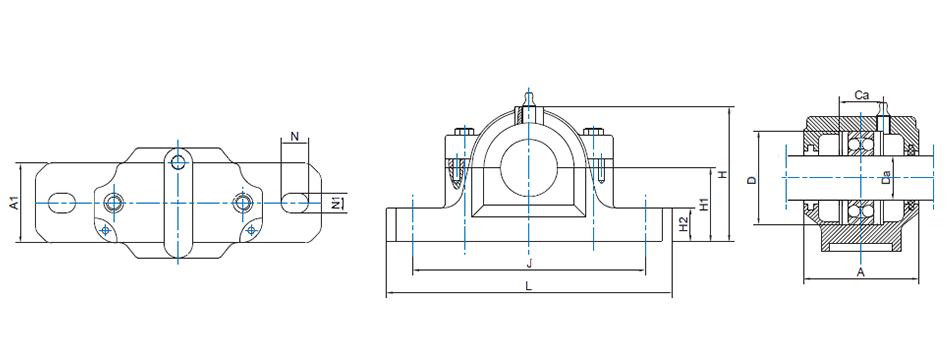

	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	DIMENSIONS													BEARING NO	ADAPTER NO	LOCATING RING
	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	Da	A	A1	Ca	D	H	H1	H2	J	L	N	N1	Kg	BEARING NO	ADAPTER NO	LOCATING RING
	SNA 505	505 TG	20	67	46	25	52	74	40	19	130	165	20	15	1.50	1205 K 2205 K 22205 K	H 205 H 305 H 305	2 FRB 5.00 52 2 FRB 3.50 52 2 FRB 3.50 52
SNA 506 - 605	SNA 605	605 TG	20	77	52	32	62	89	50	22	150	185	20	15	1,65	1305 K 2305 K	H 305 H 2305	2 FRB 7.50 62 2 FRB 4.00 62
SNA 506 - 605	SNA 506	506 TG	25	77	52	32	62	89	50	22	150	185	20	15	1,65	1206 K 2206 K 22206 K	H 206 H 306 H 306	2 FRB 8.00 62 2 FRB 6.00 62 2 FRB 6,00 62
SNA 507 - 606	SNA 606	606 TG	25	82	52	34	72	93	50	22	150	185	20	15	2.50	1306 K 2306 K	H 306 H 2306	2 FRB 7.50 72 2 FRB 3.50 72
SNA 507 - 606	SNA 507	507 TG	30	82	52	34	72	93	50	22	150	185	20	15	2,50	1207 K 2207 K 22207 K	H 207 H 307 H 307	2 FRB 8.50 72 2 FRB 5.50 72 2 FRB 5.50 72
SNA 508 - 607	SNA 607	607 TG	30	85	60	39	80	107	60	25	170	205	20	15	3,00	1307 K 2307 K	H 307 H 2307	2 FRB 9.00 80 2 FRB 4.00 80
SNA 508 - 607	SNA 508	508 TG	35	85	60	39	80	107	60	25	170	205	20	15	3,00	1208 K 2208 K 22208 K	H 208 H 308 H 308	2 FRB 10.50 80 2 FRB 8.00 80 2 FRB 8.00 80
	SNA 509	509 TG	40	85	60	30	85	109	60	25	170	205	20	15	3,20	1209 K 2209 K 22209 K	H 209 H 309 H 309	2 FRB 5.50 85 2 FRB 3.50 85 2 FRB 3.50 85
SNA 510 - 608	SNA 608	608 TG	35	90	60	41	90	113	60	25	170	205	20	15	3.70	1308 K 2308 K 21308 K 22308 K	H 308 H 2308 H 308 H 2308	2 FRB 9.00 90 2 FRB 4.00 90 2 FRB 9.00 90 2 FRB 4.00 90
SNA 510 - 608	SNA 510	510 TG	45	90	60	41	90	113	60	25	170	205	20	15	3,70	1210 K 2210 K 22210 K	H 210 H 310 H 310	2 FRB 10.50 90 2 FRB 9.00 90 2 FRB 9.00 90
